1. Introduktion
The Optronics SD-100 Thermal Dri Boot Dryer is designed to safely and effectively dry footwear such as boots, shoes, and waders. Utilizing thermal convection, this dryer circulates warm air naturally, preventing damage to delicate materials like leather. It operates without fans, ensuring a gentle drying process suitable for various types of footwear.

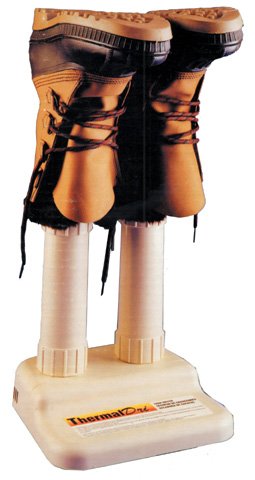

Figure 1: Optronics SD-100 Thermal Dri Boot Dryer. This image displays the compact design of the boot dryer, featuring its base unit and two upward-extending drying posts where footwear is placed.
2. Vigtige sikkerhedsoplysninger
- Læs alle instruktioner før brug af apparatet.
- Do not immerse the dryer in water or other liquids.
- Ensure the power cord is not damaged. If damaged, contact qualified personnel for repair.
- Brug kun i et godt ventileret område.
- Do not block the air vents on the unit.
- Unplug the dryer from the outlet when not in use and before cleaning.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de er blevet under opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed. .
- Hold børn væk fra apparatet.
- Not recommended for gloves or mittens.
3. Opsætningsvejledning
- Udpak tørretumbleren: Carefully remove the Optronics SD-100 Boot Dryer from its packaging.
- Vælg en placering: Place the dryer on a flat, stable surface in a well-ventilated area. Ensure there is sufficient space around the unit for proper air circulation.
- Strømtilslutning: Sæt tørretumbleren i en almindelig 110-volt stikkontakt.
- Optional Extension Tubes: If drying boots taller than 10 inches, consider purchasing and attaching the 8-inch extension tubes (model OP1080, sold separately) to the drying posts.
4. Betjeningsvejledning
- Prepare Footwear: Remove any excess mud or debris from the footwear before placing it on the dryer.
- Place Footwear: Invert your boots, shoes, or waders and place them over the drying posts. Ensure the footwear is fully seated on the posts to allow warm air to circulate effectively inside.
- Activate Drying: The dryer begins operating once plugged in. There is no on/off switch; the unit heats up automatically.
- Tørretid: Drying time will vary depending on the material, thickness, and saturation level of the footwear. Allow several hours, typically overnight, for thorough drying. The thermal convection process is gentle and gradual.
- Remove Footwear: Once dry, carefully remove the footwear from the posts.
Note: The Optronics SD-100 uses a natural thermal convection process, which means it operates quietly without a fan. This method is designed to protect and preserve the integrity of your footwear materials, especially leather, by avoiding excessive heat or forced air.
5. Vedligeholdelse
- Rensning: Before cleaning, always unplug the dryer from the electrical outlet. Wipe the exterior surfaces with a soft, damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke enheden i vand.
- Opbevaring: When not in use, store the dryer in a cool, dry place, away from direct sunlight and moisture.
- Inspektion: Periodically inspect the power cord and the unit for any signs of damage. If damage is observed, discontinue use and contact customer support.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Dryer does not heat up. | Ingen strømforsyning. | Ensure the dryer is securely plugged into a working 110-volt outlet. Check the circuit breaker. |
| Footwear is not drying effectively. | Footwear not properly placed; excessive moisture; insufficient drying time. | Ensure footwear is fully inverted over the posts. Remove excess water before drying. Allow more time for drying, especially for heavily saturated items. Ensure the unit is in a well-ventilated area. |
| Usædvanlig lugt under drift. | Lugt af ny enhed; støvophobning. | A slight odor may occur during initial use; this is normal and should dissipate. Ensure the unit is clean and free of dust. If the odor persists or is strong, discontinue use and contact support. |
7. Specifikationer
- Model: SD-100
- Strømindgang: 110 volt
- Tørremetode: Thermal Convection
- Dimensioner: Cirka 11 x 13 x 5 cm (produktmål)
- Varens vægt: Cirka 3 pund
- Materiale: Designed for various materials including leather.
- Certificeringer: ETL and UL approved.
- Fabrikant: OPTRONICS
- UPC: 047286651007
8. Garanti og support
The Optronics SD-100 Thermal Dri Boot Dryer comes with a fuld 5-års garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For warranty claims, technical support, or inquiries regarding optional accessories like the 8-inch extension tubes (model OP1080), please contact Optronics customer service. Refer to your purchase documentation for specific contact details or visit the official Optronics webwebsted.
