Philips 7388 20 Watt 6 Volt Halogenpære Brugermanual

Indledning

This manual provides essential information for the safe and effective use of your Philips 7388 20 Watt 6 Volt Halogen Bulb. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of the product.

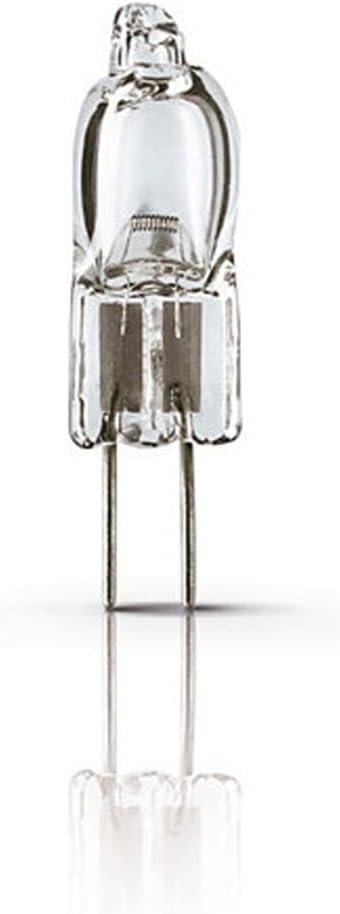

The Philips 7388 halogen bulb is designed to produce a comfortable, warm white light, maintaining its luminous efficiency throughout its operational life. It features a G4 socket and is suitable for various lighting applications.

Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger:

• Sluk: Afbryd altid strømmen til armaturet, før du monterer, fjerner eller rengør pæren.
• Håndteres med forsigtighed: Halogen bulbs can become very hot. Allow the bulb to cool completely before handling.
• Undgå kontakt: Do not touch the glass part of the bulb with bare hands. Oils from your skin can create hot spots, leading to premature failure. Use a clean cloth or gloves if necessary.
• Korrekt bindtage: Sørg for armaturets lydstyrketage matcher pærens volumentage (6 Volts). Using an incorrect voltage can damage the bulb or the fixture.
• Proper Fixture: Use only in fixtures designed for halogen bulbs and with appropriate wattage vurderinger.
• Bortskaffelse: Bortskaf brugte pærer i henhold til lokale regler.

Opsætning og installation

Følg disse trin for korrekt installation:

1. Trin 1: Strømafbrydelse
   Ensure the power supply to the lighting fixture is turned off at the circuit breaker or by unplugging the fixture.
2. Step 2: Remove Old Bulb (if applicable)
   If replacing an existing bulb, allow it to cool completely. Gently pull the old G4 bulb straight out from its socket.
3. Step 3: Prepare New Bulb
   Carefully remove the new Philips 7388 bulb from its packaging. Avoid touching the glass envelope with bare hands. If you accidentally touch it, wipe it clean with a lint-free cloth moistened with rubbing alcohol.
4. Step 4: Insert New Bulb
   Align the two pins of the G4 bulb with the holes in the socket. Gently push the bulb straight into the socket until it is fully seated. Do not force it.
5. Trin 5: Gendan strømmen
   Når pæren er sikkert installeret, skal du genoprette strømmen til armaturet.
6. Trin 6: Test
   Tænd lyskontakten for at kontrollere, at den fungerer korrekt.

Betjeningsvejledning

The Philips 7388 halogen bulb operates immediately upon receiving power. No special operating procedures are required beyond turning the fixture's power switch on or off.

• Dæmpning: If used with a compatible dimmer switch, the brightness of the bulb can be adjusted. Ensure the dimmer is rated for halogen or incandescent loads and matches the bulb's voltage og wattage.
• Varmeeffekt: Halogen bulbs produce heat. Ensure adequate ventilation around the fixture to prevent overheating.

Opretholdelse

Minimal maintenance is required for the Philips 7388 halogen bulb.

• Rensning: If the bulb becomes dusty, ensure the power is off and the bulb is cool. Gently wipe the glass with a soft, dry, lint-free cloth. Do not use liquid cleaners directly on the bulb.
• Udskiftning: When the bulb reaches the end of its life, replace it following the "Setup and Installation" steps. Always use a bulb with the same specifications (20W, 6V, G4 base) to ensure compatibility and safety.

Fejlfinding

If your Philips 7388 bulb is not functioning as expected, consider the following:

• Pære lyser ikke:
  • Kontroller om strømforsyningen til armaturet er tændt.
  • Ensure the bulb is correctly seated in the G4 socket.
  • Inspect the bulb for any visible damage or a broken filament. If damaged, replace the bulb.
  • Test armaturet med en pære, du kender til, som fungerer, for at udelukke et problem med armaturet.
• Pære flimrende:
  • Ensure the bulb is fully inserted into the socket.
  • Kontroller for løse forbindelser i armaturet eller ledningerne.
  • If using a dimmer, ensure it is compatible with halogen bulbs and not overloaded.
• Short Bulb Life:
  • Bekræft den korrekte voltage (6V) is being supplied to the bulb. Overvoltage can significantly reduce bulb life.
  • Sørg for, at pæren ikke berøres med bare hænder under installationen, da hudfedt kan forårsage for tidligt funktionssvigt.
  • Check for excessive vibration or heat in the fixture, which can shorten bulb life.

Specifikationer

Key technical specifications for the Philips 7388 Halogen Bulb:

Garanti og support

For warranty information or technical support regarding your Philips 7388 Halogen Bulb, please refer to the official Philips Lighting webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

You can visit the Philips Store for more information: Philips-butikken på Amazon
