1. Introduktion
The DW DWSM904 4-Inch Cymbal Stacker is a percussion instrument accessory designed to expand your drum kit's cymbal setup. This robust hardware allows drummers to mount an additional cymbal above an existing one, optimizing space and offering new sonic possibilities. Constructed from durable metal, it provides a secure and stable platform for various cymbal types.
2. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede, før du fortsætter installationen:
- 1x DW DWSM904 4-Inch Cymbal Stacker Unit (includes felts and wingnut)
Figure 2.1: The DW DWSM904 4-Inch Cymbal Stacker unit.
3. Opsætning og installation
3.1 Attaching to a Cymbal Stand
- Ensure your existing cymbal stand is stable and securely positioned.
- Remove the top cymbal and any felts or wingnuts from the main cymbal stand post.
- Thread the base of the DW DWSM904 Cymbal Stacker onto the threaded post of your main cymbal stand. Tighten it securely by hand.
- Place the main cymbal back onto the stand, resting on the lower felt of the stacker.

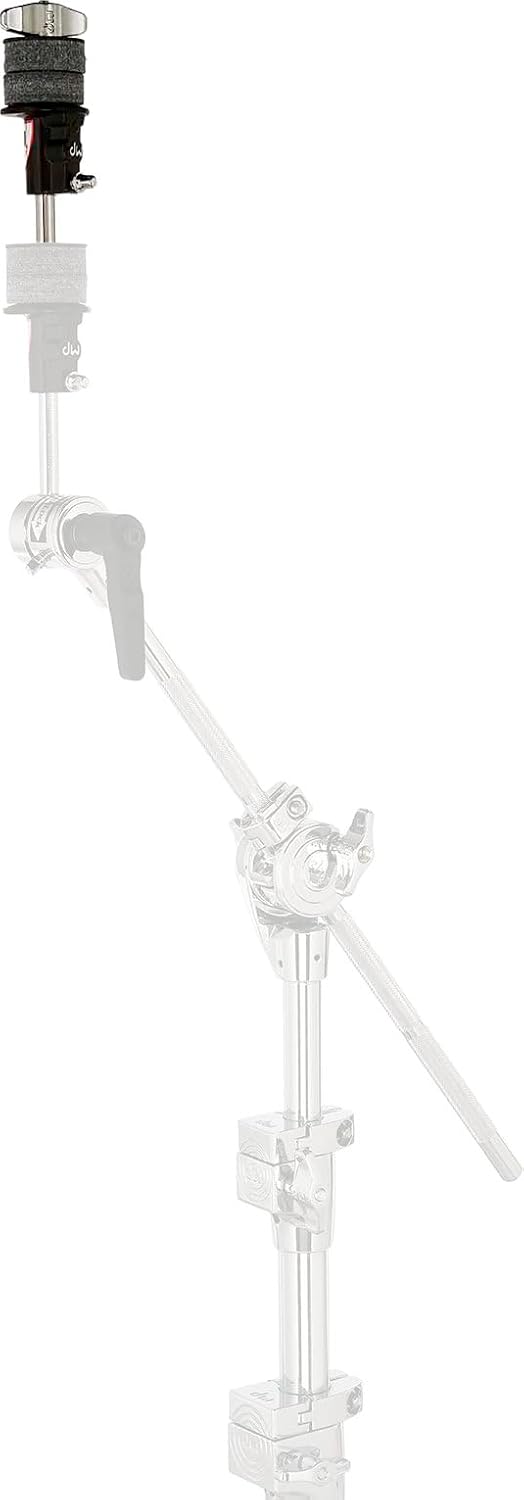

Figure 3.1: The DW DWSM904 Cymbal Stacker attached to a cymbal stand.
3.2 Mounting a Cymbal
- Place a felt washer onto the top post of the DWSM904 stacker.
- Carefully place your desired secondary cymbal (e.g., a splash or small crash) onto the felt washer.
- Add another felt washer on top of the cymbal.
- Secure the cymbal by threading the included wingnut onto the top post and tightening it firmly, but not excessively, to allow the cymbal to resonate freely.
Figure 3.2: A smaller cymbal mounted on the DW DWSM904 Cymbal Stacker above a larger cymbal.
4. Betjening
The DW DWSM904 Cymbal Stacker is designed for straightforward use. Once installed, it provides a fixed position for your secondary cymbal. Ensure all connections are hand-tightened for stability during play.
5. Pleje og vedligeholdelse
To ensure the longevity and optimal performance of your DW DWSM904 Cymbal Stacker, follow these maintenance guidelines:
- Rensning: Wipe down the metal components with a soft, dry cloth after use to remove dust, fingerprints, and moisture. Avoid abrasive cleaners or solvents that could damage the finish.
- Inspektion: Periodically check all threaded connections and wingnuts to ensure they are secure. Tighten any loose parts by hand.
- Opbevaring: When not in use, store the cymbal stacker in a dry environment to prevent corrosion.
- Felt Replacement: Over time, felt washers may compress or wear out. Replace them as needed to maintain proper cymbal support and prevent keyholing.
6. Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Cymbal wobbles excessively on the stacker. | Loose wingnut or worn felts. | Ensure the top wingnut is hand-tightened. Replace worn felt washers. |
| Stacker feels unstable on the main cymbal stand. | Stacker not fully threaded or tightened onto the main stand post. | Remove the stacker and re-thread it onto the main stand post, ensuring it is fully seated and hand-tightened. |
| Difficulty threading the stacker onto the stand. | Cross-threading or incompatible thread size. | Ensure the stacker is aligned straight before threading. Do not force it. Verify compatibility with your cymbal stand's thread size. |
7. Produktspecifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | DWSM904 |
| Mærke | DW (Drum Workshop Inc.) |
| Produkttype | Cymbal Stacker |
| Længde | 4 inches (approximate stacking height) |
| Materiale | Metal |
| Farve | Black (main body), Chrome (hardware) |
| Varens vægt | 3.2 ounce (ca. 0.2 lbs) |
| Produktmål (L x B x H) | 10 x 4 x 3 cm (emballage/samlede dimensioner) |
| Oprindelsesland | Taiwan |
| UPC | 647139108117 |
8. Garanti og support
For information regarding product warranty, technical support, or service, please refer to the official DW (Drum Workshop Inc.) webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.
