Juno Lighting IC22 6-Inch IC Rated Universal Incandescent Housing

Indledning

This manual provides instructions for the installation, operation, and maintenance of the Juno Lighting IC22 6-Inch IC Rated Universal Incandescent Housing. This housing is designed for new construction applications and features an Air-Loc seal to minimize air leakage, contributing to energy efficiency. It is suitable for direct contact with insulation (IC-rated).

Nøglefunktioner omfatter:

• Adjustable Socket Plate: Accommodates various lamp and trim combinations.
• Detachable Socket: Features snap-in springs for easy bulb and trim changes.
• Air-Loc Seal: Reduces heating and cooling costs by preventing air infiltration and exfiltration.
• IC vurderet: Approved for direct contact with insulation.
• Standard bindtage: Operates on 120 volts, suitable for most residential applications.

Image: The Juno Lighting IC22 6-Inch IC Rated Universal Incandescent Housing, showing its main components.

Sikkerhedsoplysninger

Læs venligst alle instruktioner omhyggeligt inden installation og brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller andre farer.

• ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen til sikringen eller strømafbryderen før installation eller servicering.
• FORSIGTIGHED: Risk of fire. Use only incandescent lamps inden for det angivne wattage and type for the chosen trim. Refer to trim instructions for specific lamp krav.
• Sørg for, at alle elektriske tilslutninger er udført i overensstemmelse med lokale forskrifter og bestemmelser samt den nationale elektriske kode (NEC).
• Dette produkt skal installeres af en kvalificeret elektriker.
• Undlad at ændre eller modificere armaturet.
• Hold brændbare materialer væk fra lamp.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Juno Lighting IC22 Universal Incandescent Housing (1 unit)

Note: Trims and light bulbs are sold separately.

Opsætning og installation

The IC22 housing is designed for new construction installations. Follow these steps for proper setup:

1. Forbered installationsområdet

• Sluk for strømmen ved afbryderen eller sikringsskabet, før du starter.
• Determine the desired location for the recessed light fixture. Ensure there is sufficient clearance above the ceiling for the housing.
• The housing is IC-rated, allowing direct contact with insulation.

2. Mount the Housing

The IC22 features a Real Nail 3 telescoping system for secure mounting:

• Extend the bar hangers to span between ceiling joists. The bugle-headed nails allow for easy repositioning.
• For suspended ceiling grids, use the integral T-bar clips to secure the housing.
• Utilize the patented breakaway bars for installations in tight joist spacing.
• The curved foot on the bar hangers facilitates alignment with the joist bottom.
• Once positioned, use the Quick-Loc slot and oversized set screw to lock the fixture in place.
• Bar hangers can be re-positioned 90 degrees if needed for specific installations.

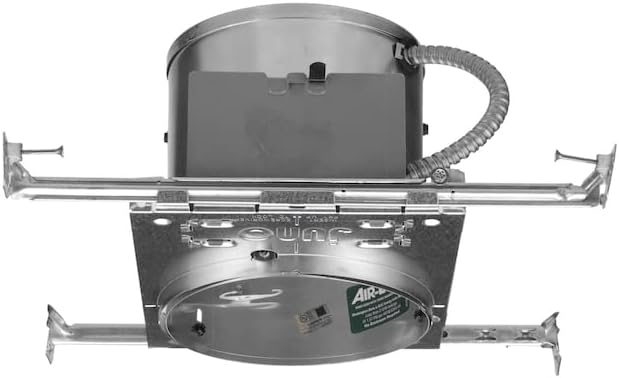

Billede: Bund view of the IC22 housing, illustrating the adjustable bar hangers and mounting points.

3. Elektriske forbindelser

The IC22 includes a pre-wired junction box:

• Åbn dækslet til samledåsen.
• Connect the building's electrical supply wires to the housing's wires (black to black, white to white, ground to ground).
• The junction box has (5) 1/2-inch and (1) 3/4-inch knockouts for wiring entry.
• Use the (4) non-metallic sheathed cable connectors provided for secure wire entry.
• Ensure the ground wire is properly connected.
• The housing is UL Listed and C-UL/CSA certified for through-branch wiring, allowing a maximum of (8) 12-AWG conductors.
• Close the junction box cover securely.

Billede: Side view of the IC22 housing, highlighting the pre-wired junction box for electrical connections.

4. Install Bulb and Trim

• The housing features an adjustable socket plate and a detachable medium base porcelain socket with nickel-plated copper screw shell.
• Insert the appropriate incandescent light bulb into the socket. Recommended lamp types include A19, BR30, BR40, PAR16, PAR20, PAR30, PAR30L, PAR38, and R20.
• Install the desired trim (sold separately) according to its specific instructions.
• The housing is wet location listed when using specific trims (239, 241, 242, 28, 29 with PAR30/PAR38 outdoor rated bulbs).

Betjeningsvejledning

Once installed, the Juno IC22 housing operates as a standard incandescent recessed light fixture.

• Ensure the correct incandescent bulb type and wattage are used as specified by the chosen trim.
• The fixture is designed for 120-volt electrical systems.
• Control the light fixture using a standard wall switch or a compatible remote control system, if applicable to your setup.

Opretholdelse

Regular maintenance ensures optimal performance and longevity of your recessed housing.

• Rensning: Disconnect power before cleaning. Wipe the trim and exposed parts with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Udskiftning af pære: Always disconnect power before replacing a bulb. Allow the old bulb to cool completely before removal. Replace with a bulb of the same type and wattage as originally installed or as specified by the trim manufacturer.
• Inspektion: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, consult a qualified electrician.

Fejlfinding

If you experience issues with your Juno IC22 housing, refer to the following common problems and solutions:

Specifikationer

Image: The IC22 housing with key dimensions (7.125" height, 9.5" width) indicated.

Garanti og support

Producentens garanti

Juno Lighting Group warrants that its products are free from defects in material and workmanship. Juno Lighting Group's obligation is expressly limited to repair or replacement, without charge, at Juno Lighting Group's factory after prior written return authorization has been granted. This warranty shall not apply to products which have been altered or repaired outside of Juno Lighting Group's factory. This warranty is in lieu of all other warranties, expressed or implied, and without limiting the generality of the foregoing phrase, excludes any implied warranty of merchantability. Also, there are no warranties which extend beyond the description of the product on the company's literature setting forth terms of sale.

The warranty period for general lighting products is one year from the date of purchase.

Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Juno Lighting Group customer support. Refer to the official Juno webhjemmeside for aktuelle kontaktoplysninger.

Du kan også besøge Juno-butikken på Amazon for yderligere produktinformation og ressourcer.
