Orbit 54254 4-Inch WaterMaster Pop-Up Sprinkler Head Instruction Manual

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Orbit 54254 4-Inch WaterMaster Pop-Up Sprinkler Head. Please read this manual thoroughly before beginning installation or operation to ensure proper function and longevity of your sprinkler system component.

The Orbit 54254 is designed for efficient and reliable lawn watering, featuring a 4-inch pop-up height suitable for various turf applications. Its durable construction ensures consistent performance.

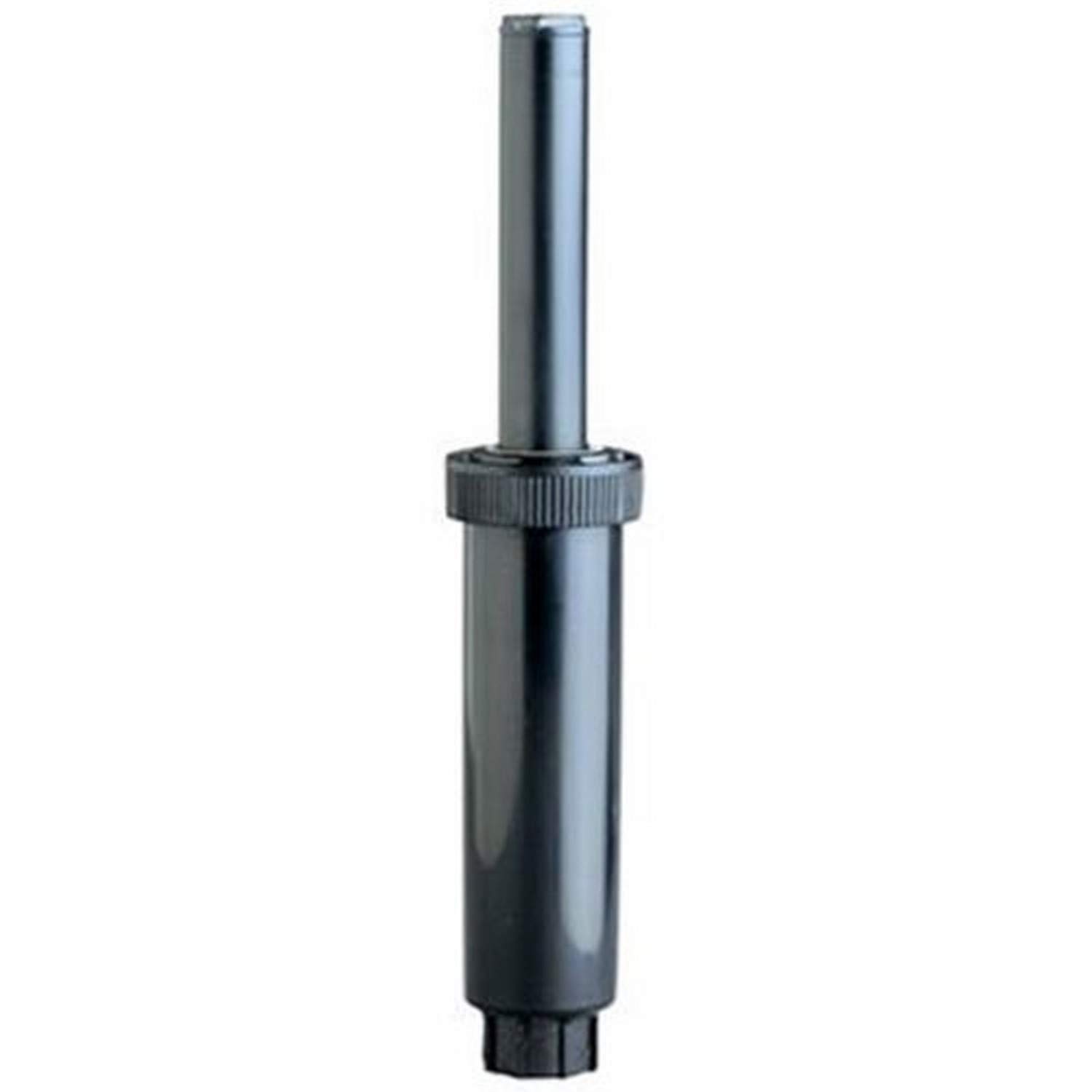

Image: The Orbit 54254 4-Inch WaterMaster Pop-Up Sprinkler Head, a key component for an efficient irrigation system.

Opsætning og installation

Proper installation is crucial for optimal performance of your pop-up sprinkler head. Follow these steps carefully:

1. Planlayout: Before digging, plan the placement of your sprinkler heads to ensure adequate coverage and avoid obstructions. Mark the locations where each sprinkler head will be installed.
2. Dig Trenches: Dig trenches for the main water lines and lateral lines. Trenches should be deep enough to bury the pipes and sprinkler bodies, typically 6-12 inches, depending on local codes and frost lines.
3. Tilslut rør: Connect the main water supply to the irrigation system's main line. Install lateral lines from the main line to each sprinkler head location using appropriate fittings (e.g., swing joints, elbows).
4. Install Sprinkler Head:
   • Attach the Orbit 54254 sprinkler head to the end of the lateral line using a swing joint or appropriate threaded fitting. Swing joints allow for flexibility and easier adjustment of the sprinkler's height and position.
   • Ensure the top of the sprinkler head is flush with the ground level when retracted. This prevents damage from lawnmowers and foot traffic.
   • Hand-tighten the sprinkler head onto the fitting, then use a wrench for a final quarter-turn to ensure a watertight seal without overtightening.
5. Skyllesystem: Before backfilling trenches, temporarily cap off the sprinkler heads (if not already installed) and flush the system with water to remove any dirt or debris that may have entered the pipes during installation.
6. Backfill Trenches: Once the system is flushed and all connections are secure, carefully backfill the trenches, ensuring the sprinkler heads remain at the correct height.

Betjeningsvejledning

The Orbit 54254 WaterMaster Pop-Up Sprinkler Head operates as part of an automated irrigation system. Its operation is controlled by your irrigation timer or controller.

1. Systemaktivering: When the irrigation controller sends a signal to the zone valve connected to this sprinkler head, water pressure will cause the sprinkler to pop up from the ground.
2. Water Distribution: The sprinkler head will then distribute water according to its pre-set spray pattern and radius. The 54254 model is a half-popup head, meaning it typically covers a 180-degree arc.
3. System Deactivation: Once the watering cycle for that zone is complete, the water pressure will drop, and the sprinkler head will retract back into the ground, becoming flush with the turf.

Adjusting Spray Pattern and Radius

While the 54254 is a fixed half-popup head, some adjustments might be possible depending on the nozzle installed. Refer to the nozzle's specific instructions for details. Generally, adjustments involve:

• Radius Adjustment: Use a small flathead screwdriver to turn the radius adjustment screw located on the top of the nozzle. Turning clockwise typically decreases the spray distance, while counter-clockwise increases it.
• Arc Adjustment: For adjustable arc nozzles (if applicable), rotate the top of the nozzle or use a specific tool to set the desired watering arc. The 54254 is described as a "Poly Sl Half Popup Head", suggesting a fixed 180-degree arc.

Note: Always make adjustments while the water is running to observe the spray pattern and ensure accurate coverage.

Opretholdelse

Regular maintenance helps ensure the efficient and long-lasting performance of your sprinkler heads.

• Regelmæssig inspektion: Periodically check sprinkler heads for proper pop-up and retraction, consistent spray patterns, and any visible damage.
• Rengøring af dyser: Debris can clog nozzles. If a sprinkler head is not spraying correctly, carefully remove the nozzle and clean it. You may need to unscrew the top of the sprinkler body to access the filter screen below the nozzle. Rinse the screen and nozzle under running water.
• Vinterisering: In regions subject to freezing temperatures, it is essential to winterize your irrigation system to prevent damage. This typically involves shutting off the main water supply, draining the system, and blowing out the lines with compressed air. Consult a local irrigation professional if you are unsure about proper winterization procedures for your climate.
• Forårs opstart: In spring, slowly turn on the main water supply to the irrigation system. Inspect all sprinkler heads for proper operation and adjust as needed.

Fejlfinding

Specifikationer

• Modelnummer: 54254
• Produkttype: Pop-Up Sprinkler Head
• Pop-Up Height: 4 tommer
• Spray mønster: Half-circle (180 degrees)
• Dimensioner: 2 x 2 x 6 tommer (produktmål)
• Varens vægt: 1.6 ounce
• Mærke: Orbit
• Oprindelsesland: Kina
• Montering påkrævet: No (for the head itself)

Garantioplysninger

Orbit products are manufactured to high-quality standards. For specific warranty details regarding your Orbit 54254 4-Inch WaterMaster Pop-Up Sprinkler Head, please refer to the official Orbit website or contact Orbit customer support directly. Keep your proof of purchase for warranty claims.

Kundesupport

If you require further assistance or have questions not covered in this manual, please contact Orbit customer support:

• Webwebsted: Besøg den officielle Orbit webwebsted for ofte stillede spørgsmål, produktregistrering og yderligere ressourcer. www.orbitonline.com
• Telefon: Refer to the Orbit website for current customer service contact numbers.
